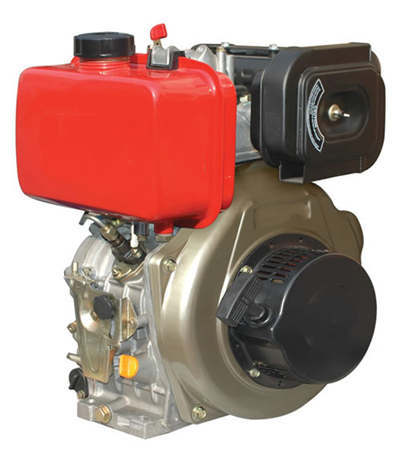

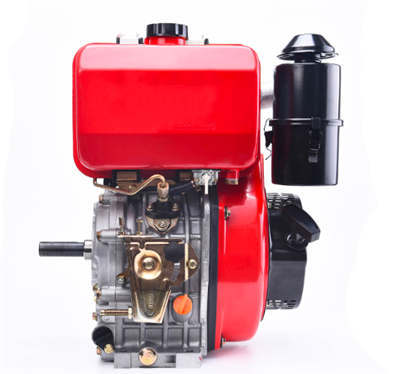

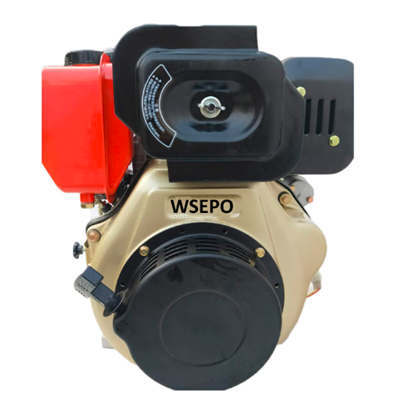

WSE188F 11HP 456CC Direct Injection Small Air Cool Diesel Engine for All kinds of Applications

SKU: WSE009
11HP 456CC Direct Injection Small Air Cool Diesel Engine for Farm Tiller, Road Cutter, Air Compressor, Power Generator, Boat Propeller, Water Pump
0.0 (0 Reviews)
0 Sold
$380.00 $345.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • WSE188F 11HP 456CC Direct Injection Small Air Cool Diesel Engine for All kinds of Applications
  • WSE188F 11HP 456CC Direct Injection Small Air Cool Diesel Engine for All kinds of Applications
  • WSE188F 11HP 456CC Direct Injection Small Air Cool Diesel Engine for All kinds of Applications
  • Description
China Made Quality Small  Air Cool Diesel Engine WSE188F 11HP 456CC, Direct Injection.
Optional Output Shaft Tpye:


Small Air Cool Diesel Engine Applications: Can be used for Farm Tiller, Road Cutter, Air Compressor, Power Generator, Boat Propeller, Water Pump etc.
Products Technical Specifications for Small  Air Cool Diesel Engine Models from WSEPO
Model WSE170F WSE173F WSE178F/FS WSE186F/FS WSE186FA WSE188F/FS WSE192F/FS
Type Single-cylinder, vertical,4-stroke,air-cooled diesel engine
Combustion system Direct injection
Bore×stroke(mm) 70×55 73×59 78×62 86×70 86×72 88×75 92×75
Displacement(cc) 211 247 296 406 418 456 499
Speed(rpm) 3600 3600 3600 3600 3600 3600 3600
Max. output(kw/hp) (3.1)4.2 (3.5)5.0 (4.4)6.0 (6.6)9.0 (6.8)10 (7.8)11.0 (8.5)12.0
Cont. output(kw/hp) (2.8)3.8 (3.2)4.7 (4.0)5.4 (6.3)8.6 (6.5)8.8 (7.5)10.2 (8.0)11.0
Starting system Recoil or Electric(Optional)
Power output method Crankshaft / Camshaft (The speed of camshaft is 1/2 of the Crankshaft’s)
Rotary direction of output axis Counter Clockwise(View in the direction of output axis)/ Clockwise for FS Model
Fuel/lubrication(L) 0# in summer,-10# or -20# in winter light diesel fuel/SAE 10W30
Fuel capacity(L) 2.5 2.5 3.5 5.5
Lubrication capacity(L) 0.75 0.75 1.1 1.65
Recommended starting system 12V-18AH 12V-18AH 12V-24AH 12V-35AH
Net Weight(kg) 27 33 48
Engine Dimensions 332×376×415 383×421×445 417×441×494
(L×W×H)mm
9 Steps to quick start the Air Cool Diesel Engine:
