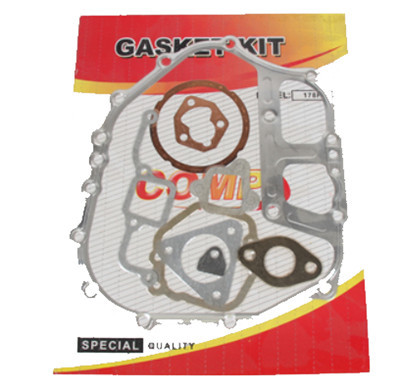

  • Entire Engine Gaskets Kit Fits for China Model 178F 6HP 296CC Small Air Cooled Diesel Engine
1/1
  • Entire Engine Gaskets Kit Fits for China Model 178F 6HP 296CC Small Air Cooled Diesel Engine

Entire Engine Gaskets Kit Fits for China Model 178F 6HP 296CC Small Air Cooled Diesel Engine

SKU: WSE210
China 178F 6HP Air Cool Diesel Engine Entire Gaskets Kit
0.0 (0 Reviews)
1 Sold
$24.99 $19.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Entire Engine Gaskets Kit Fits for China Model 178F 6HP 296CC Small Air Cooled Diesel Engine
  • Description
Entire Engine Gaskets Kit Fits for China Model 178F 6HP 296CC Small Air Cooled Diesel Engine
Product Technical Specifications for Small  Air Cool Diesel Engine Models from WSEPO
Model WSE170F WSE173F WSE178F/FS WSE186F/FS WSE186FA WSE188F/FS WSE192F/FS
Type Single-cylinder, vertical,4-stroke,air-cooled diesel engine
Combustion system Direct injection
Bore×stroke(mm) 70×55 73×59 78×62 86×70 86×72 88×75 92×75
Displacement(cc) 211 247 296 406 418 456 499
Speed(rpm) 3600 3600 3600 3600 3600 3600 3600
Max. output(kw/hp) (3.1)4.2 (3.5)5.0 (4.4)6.0 (6.6)9.0 (6.8)10 (7.8)11.0 (8.5)12.0
Cont. output(kw/hp) (2.8)3.8 (3.2)4.7 (4.0)5.4 (6.3)8.6 (6.5)8.8 (7.5)10.2 (8.0)11.0
Starting system Recoil or Electric(Optional)
Power output method Crankshaft / Camshaft (The speed of camshaft is 1/2 of the Crankshaft’s)
Rotary direction of output axis Counter Clockwise(View in the direction of output axis)/ Clockwise for FS Model
Fuel/lubrication(L) 0# in summer,-10# or -20# in winter light diesel fuel/SAE 10W30
Fuel capacity(L) 2.5 2.5 3.5 5.5
Lubrication capacity(L) 0.75 0.75 1.1 1.65
Recommended starting system 12V-18AH 12V-18AH 12V-24AH 12V-35AH
Net Weight(kg) 27 33 48
Engine Dimensions 332×376×415 383×421×445 417×441×494
(L×W×H)mm
