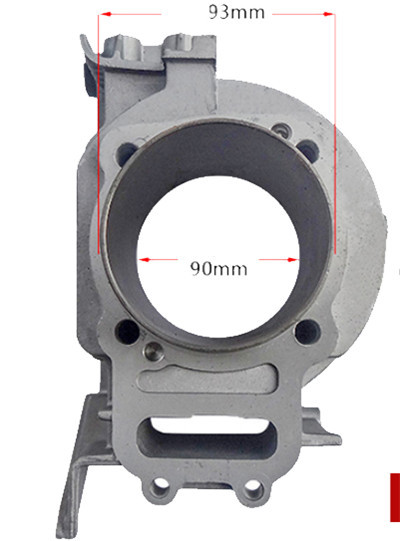

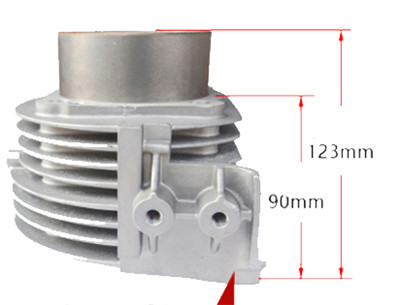

Cylinder Block Type A Fits for China Model 190F 11HP Split Type Small Air Cooled Diesel Engine

China 190F Air Cool Diesel Engine Split Cylinder block
Sold:1
Price:
Quantity:
-
+
(9999 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews
Cylinder Block Type A Fits for China Model 190F 11HP Split Type Small Air Cooled Diesel Engine
Product Technical Specifications for Small  Air Cool Diesel Engine Models from WSEPO
Model WSE170F WSE173F WSE178F/FS WSE186F/FS WSE186FA WSE188F/FS WSE192F/FS
Type Single-cylinder, vertical,4-stroke,air-cooled diesel engine
Combustion system Direct injection
Bore×stroke(mm) 70×55 73×59 78×62 86×70 86×72 88×75 92×75
Displacement(cc) 211 247 296 406 418 456 499
Speed(rpm) 3600 3600 3600 3600 3600 3600 3600
Max. output(kw/hp) (3.1)4.2 (3.5)5.0 (4.4)6.0 (6.6)9.0 (6.8)10 (7.8)11.0 (8.5)12.0
Cont. output(kw/hp) (2.8)3.8 (3.2)4.7 (4.0)5.4 (6.3)8.6 (6.5)8.8 (7.5)10.2 (8.0)11.0
Starting system Recoil or Electric(Optional)
Power output method Crankshaft / Camshaft (The speed of camshaft is 1/2 of the Crankshaft’s)
Rotary direction of output axis Counter Clockwise(View in the direction of output axis)/ Clockwise for FS Model
Fuel/lubrication(L) 0# in summer,-10# or -20# in winter light diesel fuel/SAE 10W30
Fuel capacity(L) 2.5 2.5 3.5 5.5
Lubrication capacity(L) 0.75 0.75 1.1 1.65
Recommended starting system 12V-18AH 12V-18AH 12V-24AH 12V-35AH
Net Weight(kg) 27 33 48
Engine Dimensions 332×376×415 383×421×445 417×441×494
(L×W×H)mm
